94" X 74" Dual-Machine Welding Skid W/ Fuel Cell

94" X 74" dual-machine welding skid plans with auxiliary fuel cell. The skid is designed fit a 64"L X 34"W X 40"H or smaller machine and allow it to be installed & removed from a rollback or trailer with minimal effort. It has a 4" X 2" X 3/16" rectangular tubing frame, 3" x #4.1 C-channel sub-frame, 10 gauge deck, and 1/8" fuel cell & tool box. It features a 40"L X 25"W X 18"H tool box integrated into the 70"L X 25"W X 34"H (175 gallon) auxiliary fuel cell.

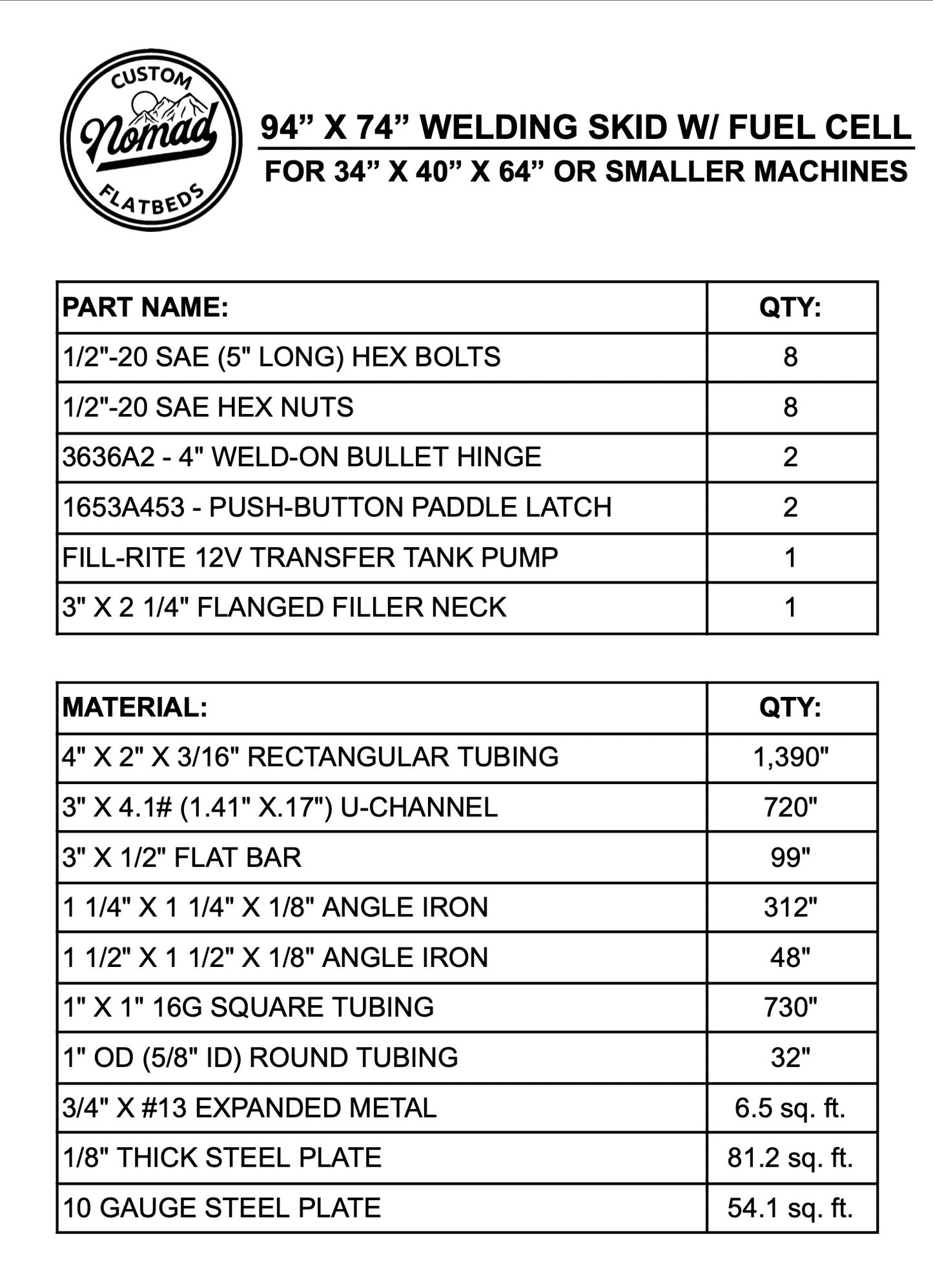

Purchase includes: 34 page .pdf layout detailing all components & assemblies, a copy of the bill of materials, a .dxf file of all sheet metal components to be cut on a CNC plasma table or laser, and 24 hour phone support from our lead engineer.
