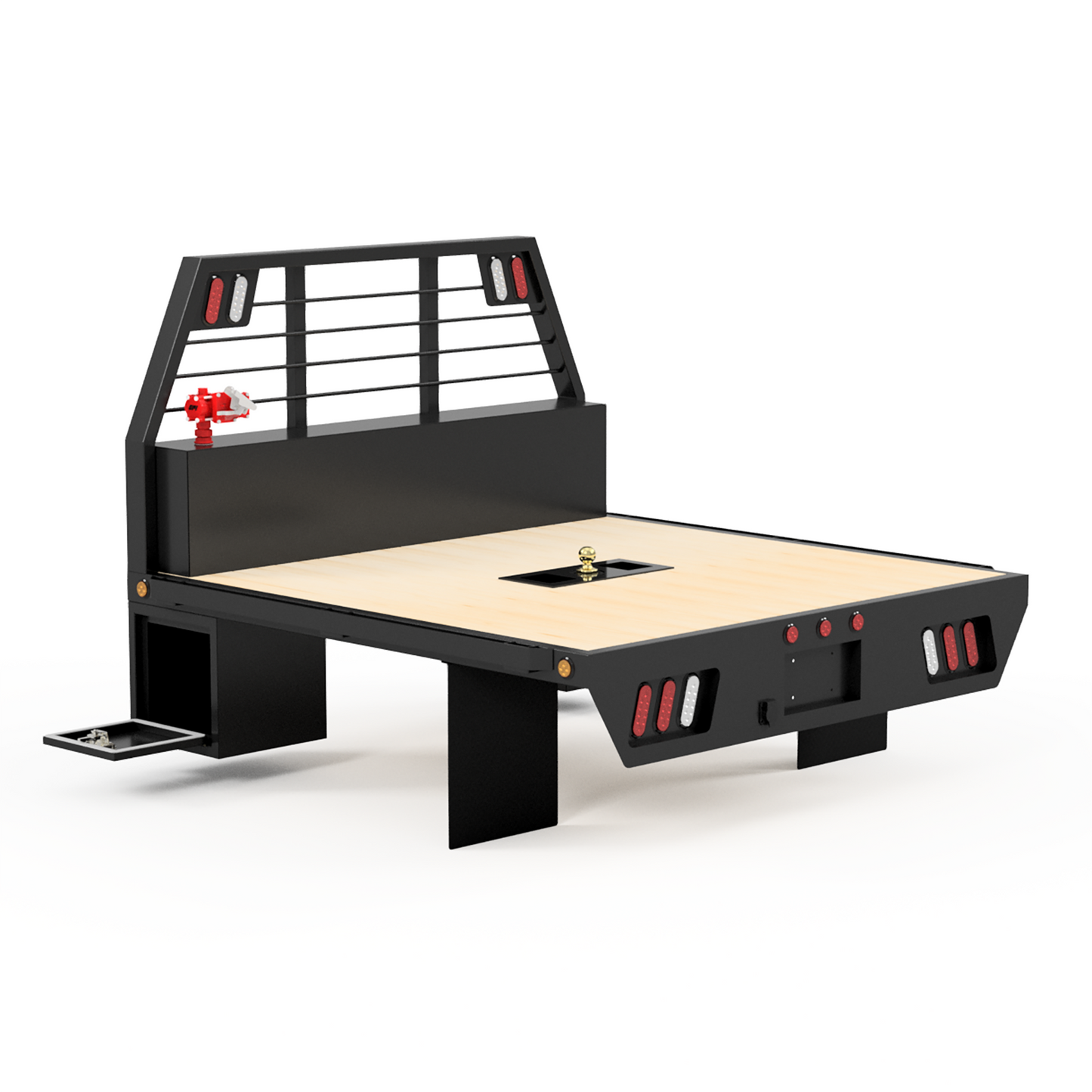

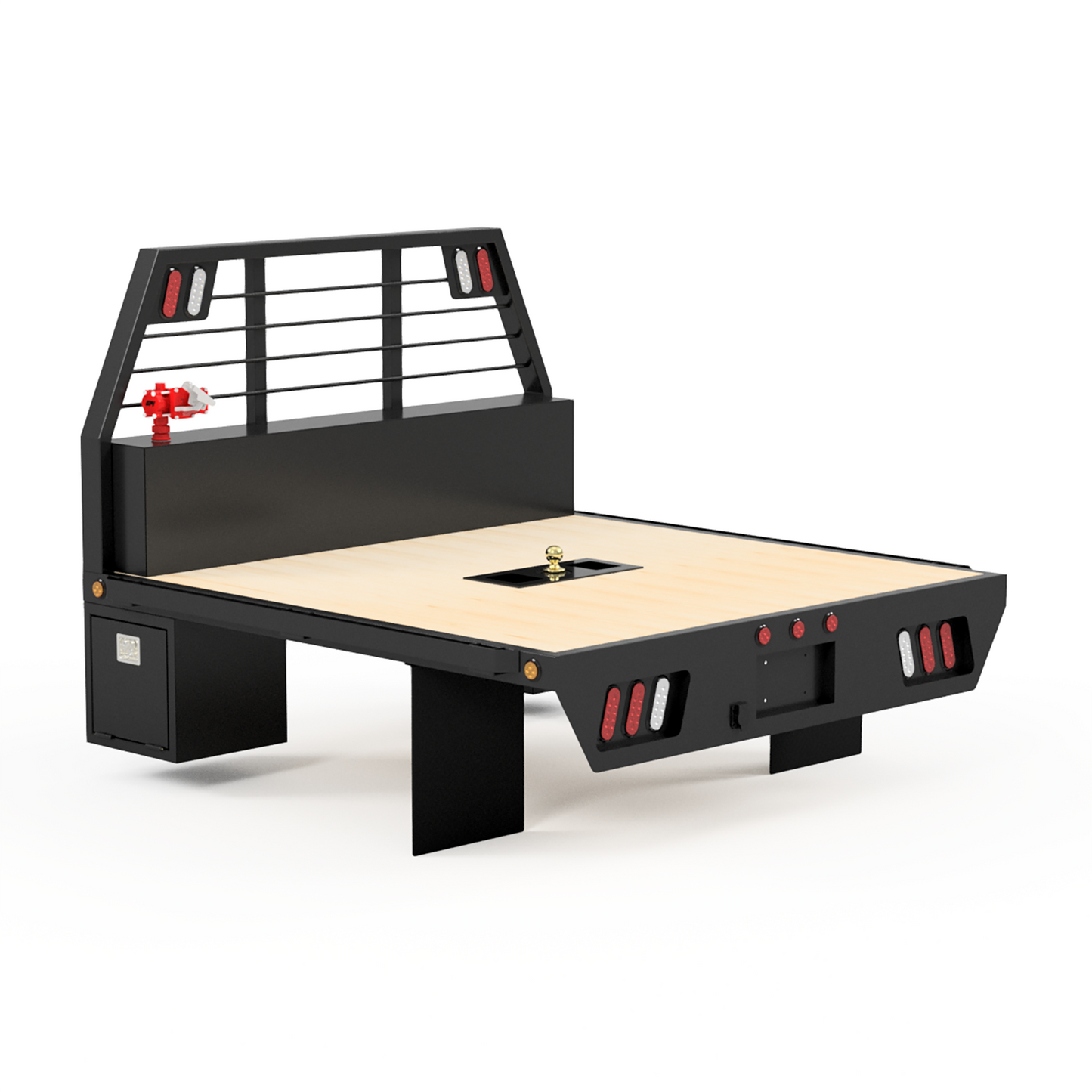

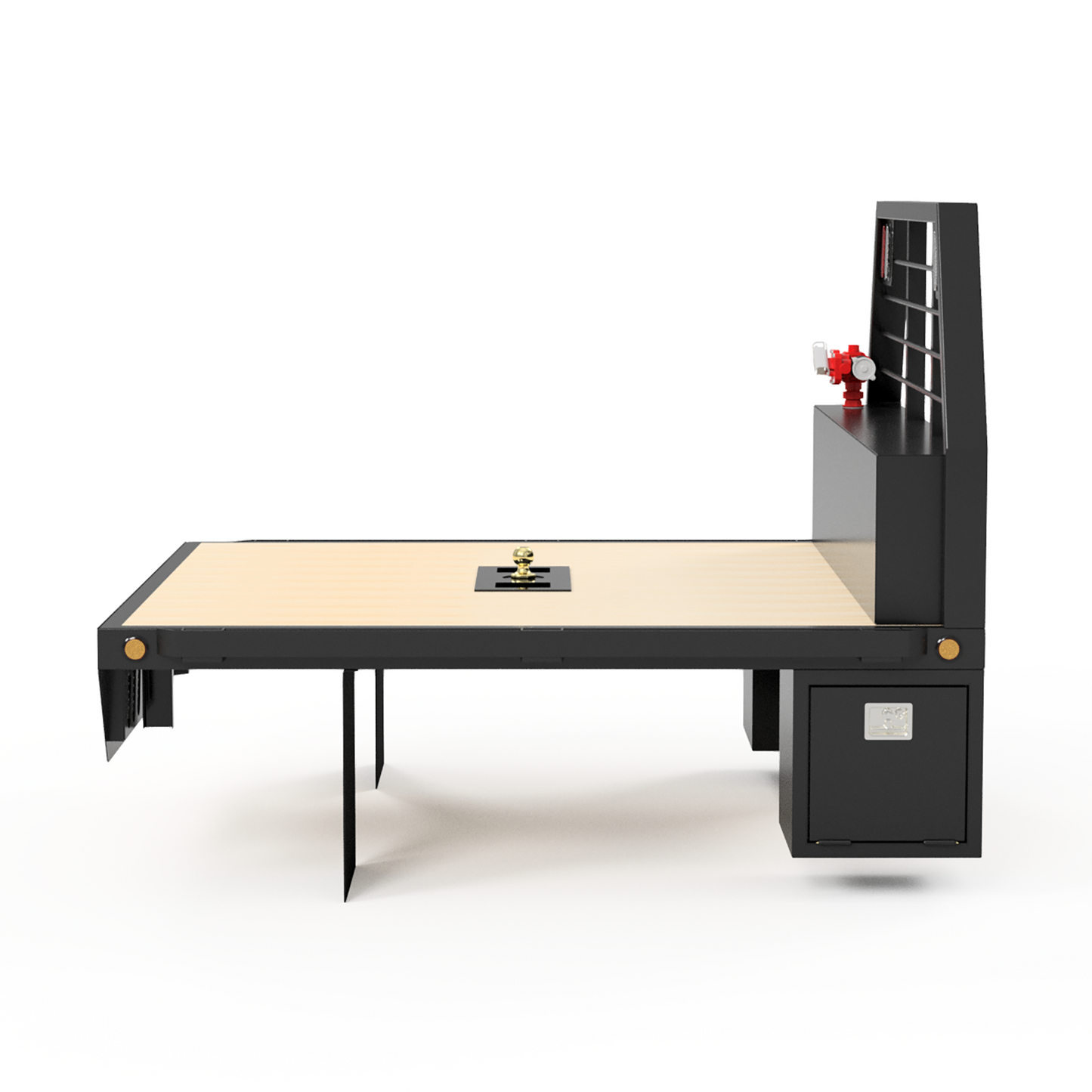

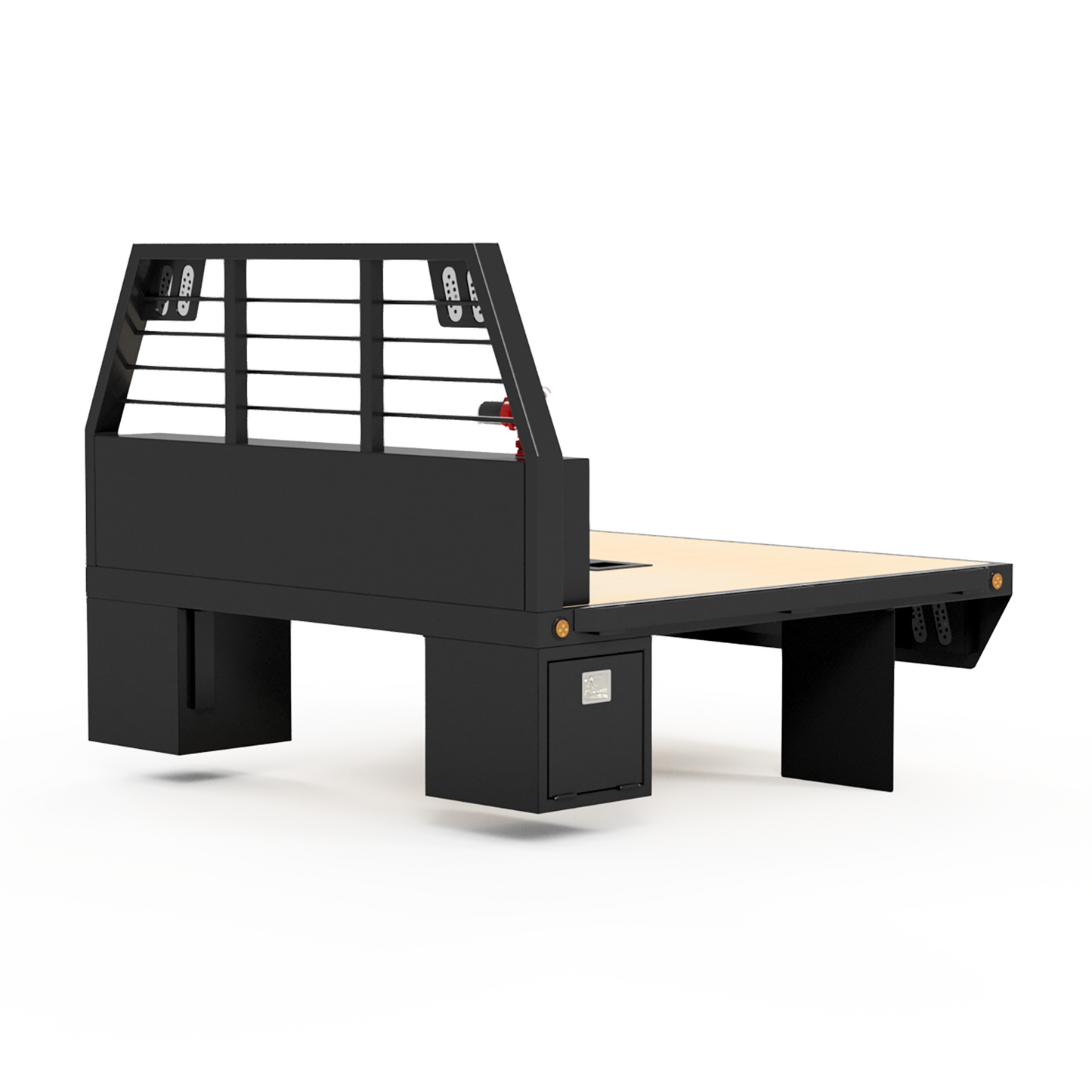

2003-2024 Ram 2500/3500 Flatbed W/ Transfer Tank

Flatbed w/ 45 gallon transfer tank designed to fit on 2003-2024 Ram 2500/3500 short-bed trucks with 42" wide frames. Built with a 4" X 2" 11 gauge rectangular tubing frame, 3" X 1 1/2" 11 gauge rectangular tubing sub-frame, 16 gauge plate boxes, 10 gauge plate tail, and a 2" X 8" treated lumber deck. Overall dimensions: 84" long X 80" wide.

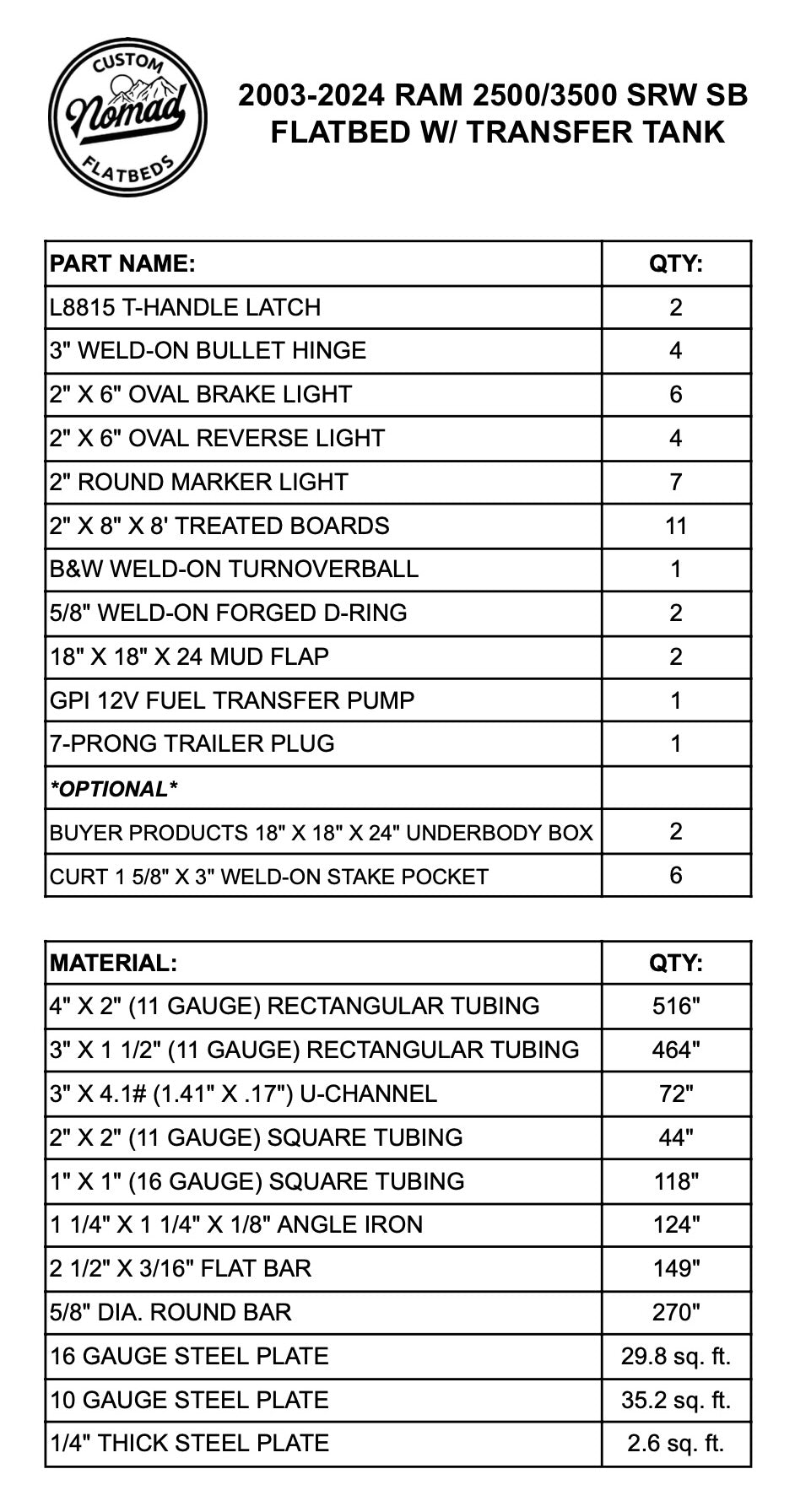

Purchase includes: 33 page .pdf layout detailing all components & assemblies, a copy of the bill of materials, the optional upgrade to include the .dxf files of all sheet metal components to be cut on a CNC plasma table or laser, and 24 hour phone support from our lead engineer.
