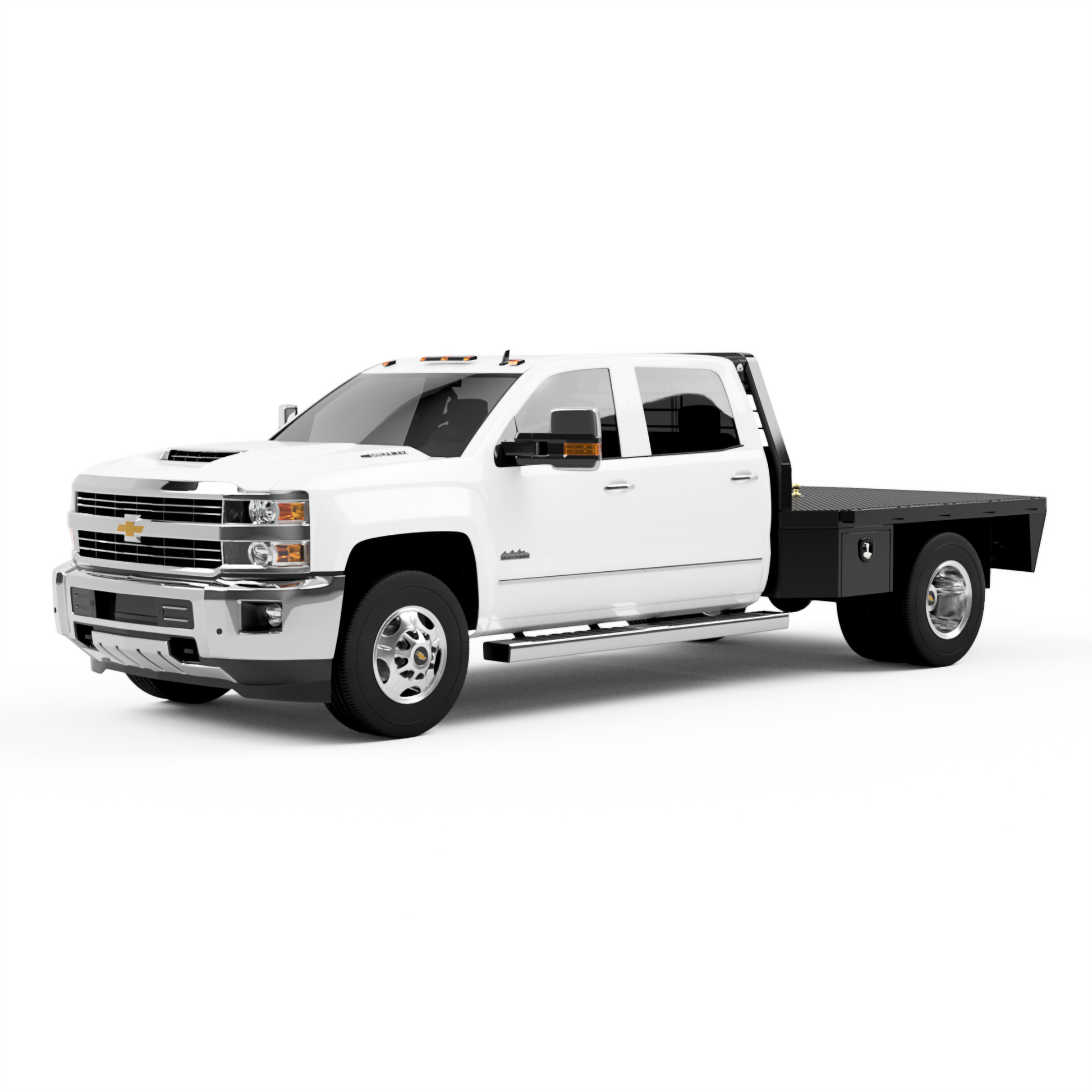

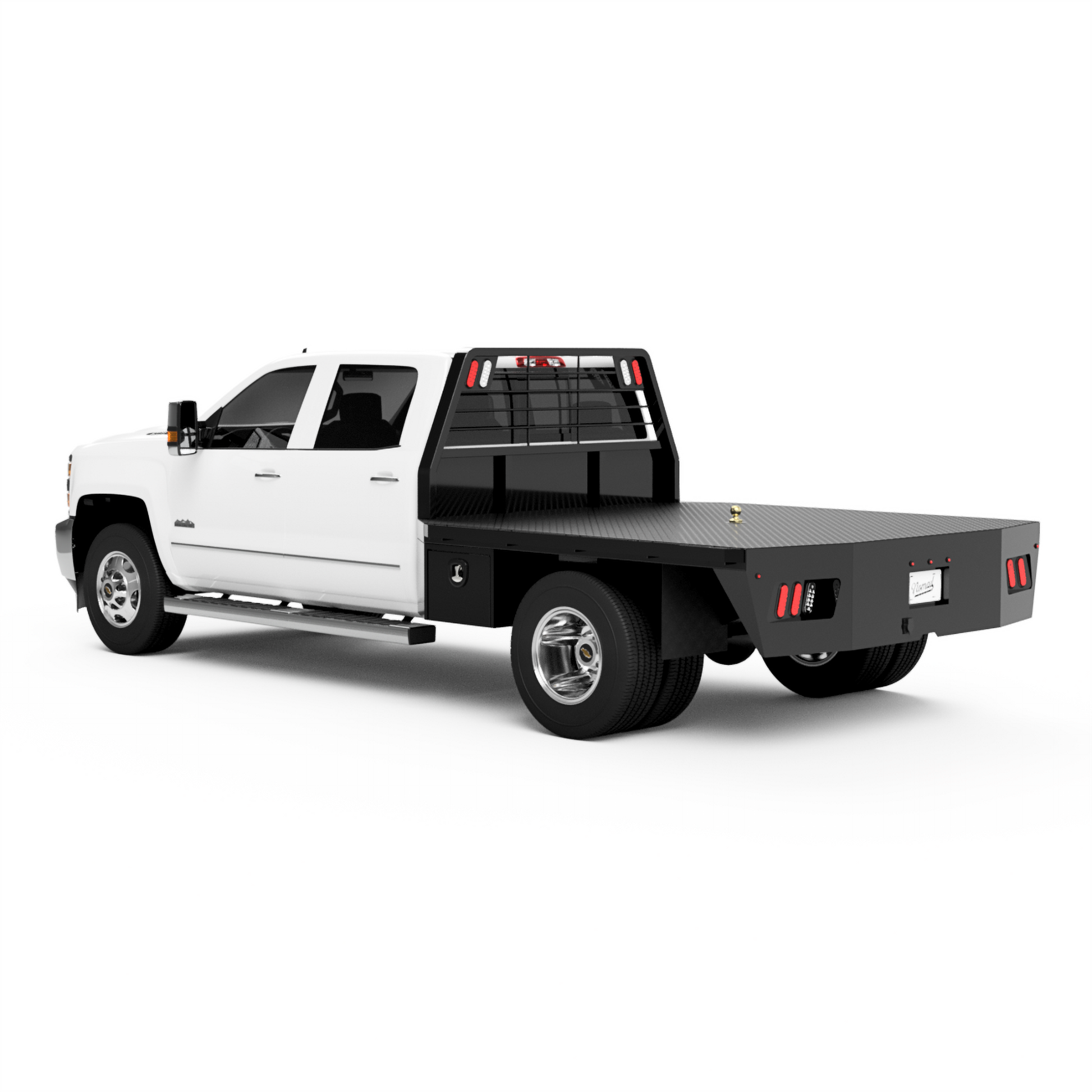

FLATIRON 2B™ Flatbed – 1988-2026 GM 3500 DRW Long Bed

Fits: Chevy/GMC DRW Long-Bed

$129.00 USD
$129.00 USD
Sale Sold out

Questions? Check the FAQs below, or contact us.

Description:

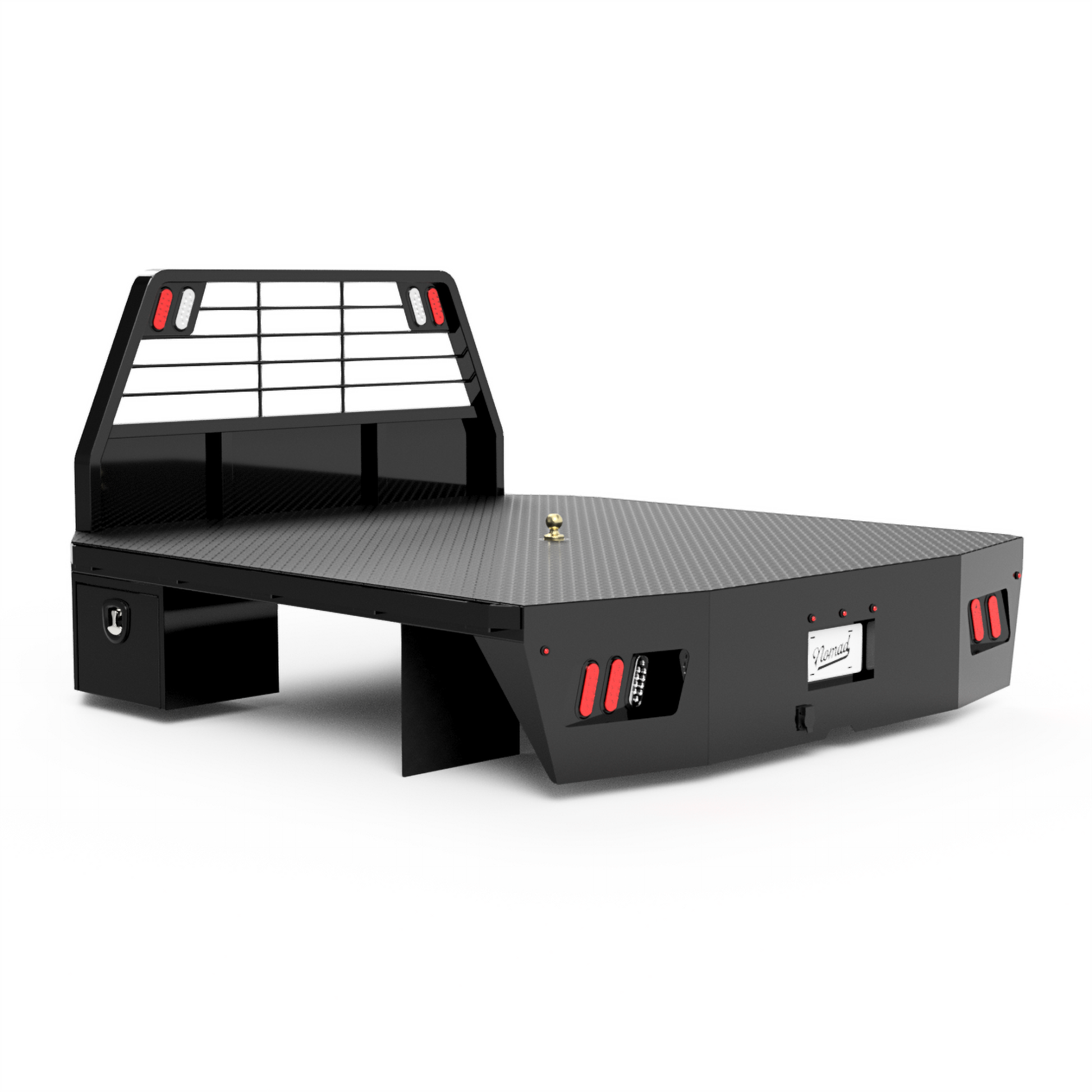

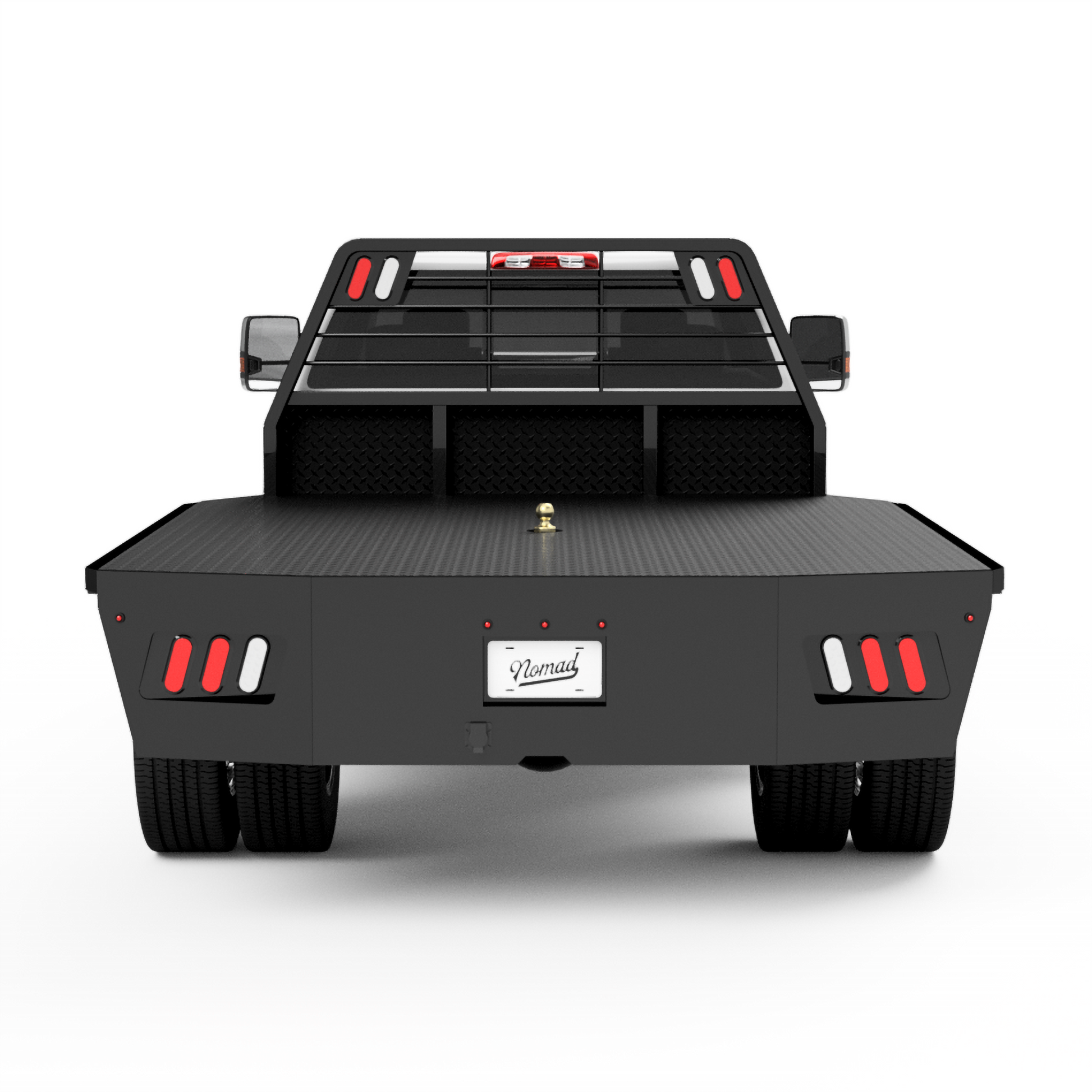

The Flatiron 2B™ is a true 'no-frills' design with added storage. Its clean un-skirted construction, rub rails, tapered tail and radiused headache rack make it the perfect starting point for individuals looking to build a rig specific to their needs, while its two under-body boxes keep tools and gear secure and out of the way. And its simple look complements just about every style of truck. Whether you're a contractor needing a place for your tools, or a farmer looking to build your own bale bed, the Flatiron 2B™ is ready for it all.

Specifications:

Dimensions
Deck length 104"
Deck width 96"
Cab-to-axle 53-7/8"
Specifications
Material Steel
Gooseneck B&W 30K Turnover
Rear hitch OEM Hitch

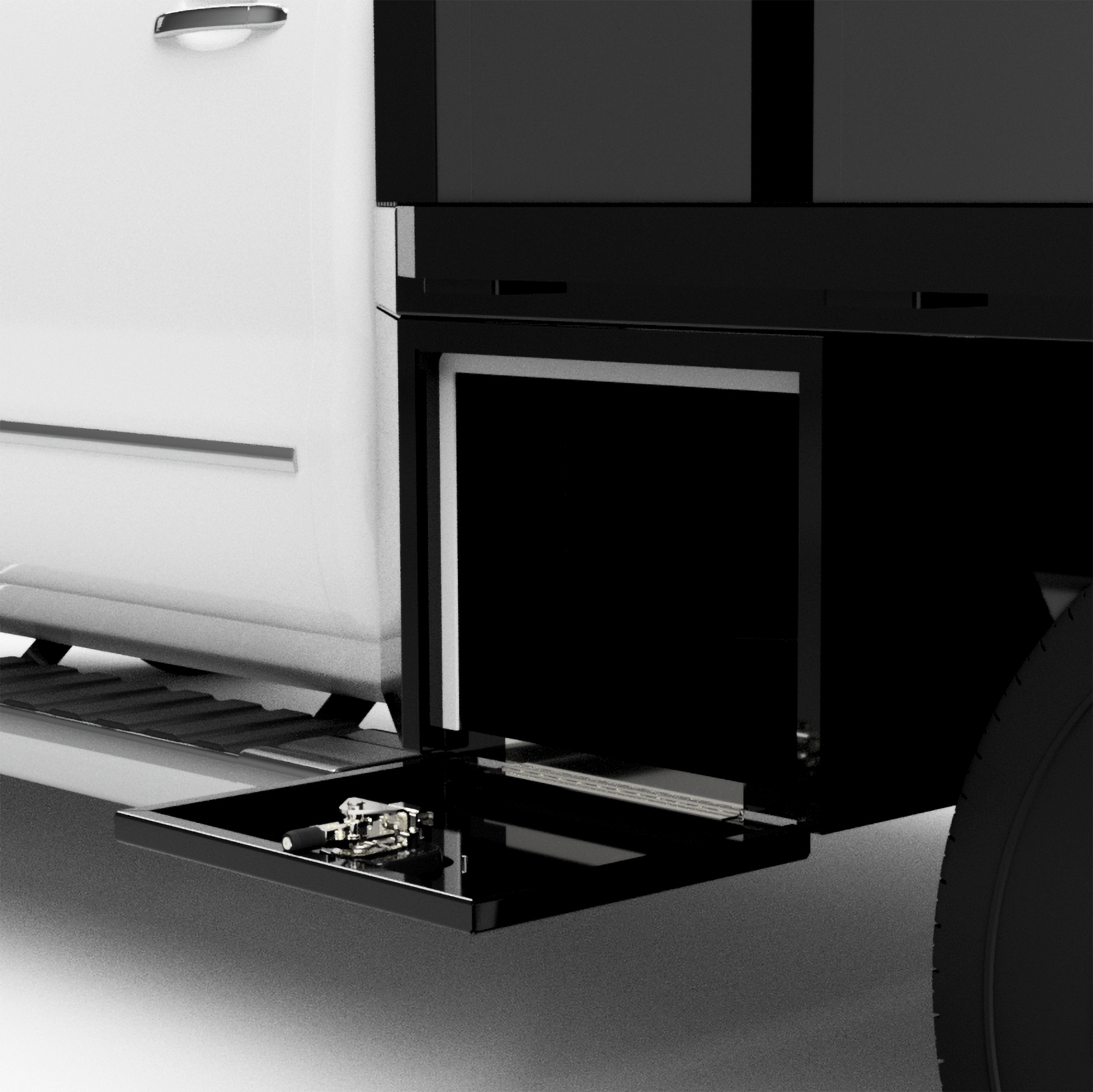

Toolboxes 2 under-body boxes
Box dimensions 32" L X 18" W X 16" H (each)
Rub rails Yes

Plan Preview

Preview only: a few sample pages from one truck's plans, with measurements blurred. Your full FLATIRON 2B™ plans are drawn for your truck and include far more pages and detail.

  • 1 / 12
  • 2 / 12
  • 3 / 12
  • 4 / 12
  • 5 / 12
  • 6 / 12
  • 7 / 12
  • 8 / 12
  • 9 / 12
  • 10 / 12
  • 11 / 12
  • 12 / 12

Click the page to zoom
FAQs

Will these plans fit my truck?

Each set of plans is drawn for a specific truck and bed length, listed in the product title. Not sure which plans fit your truck? Contact us and we'll point you in the right direction.

Can you modify a design for my truck?

In many cases, yes. Whether we can depends on the specific changes you're looking for, so contact us with the details and we'll let you know what's possible.

What files are included with my plans?

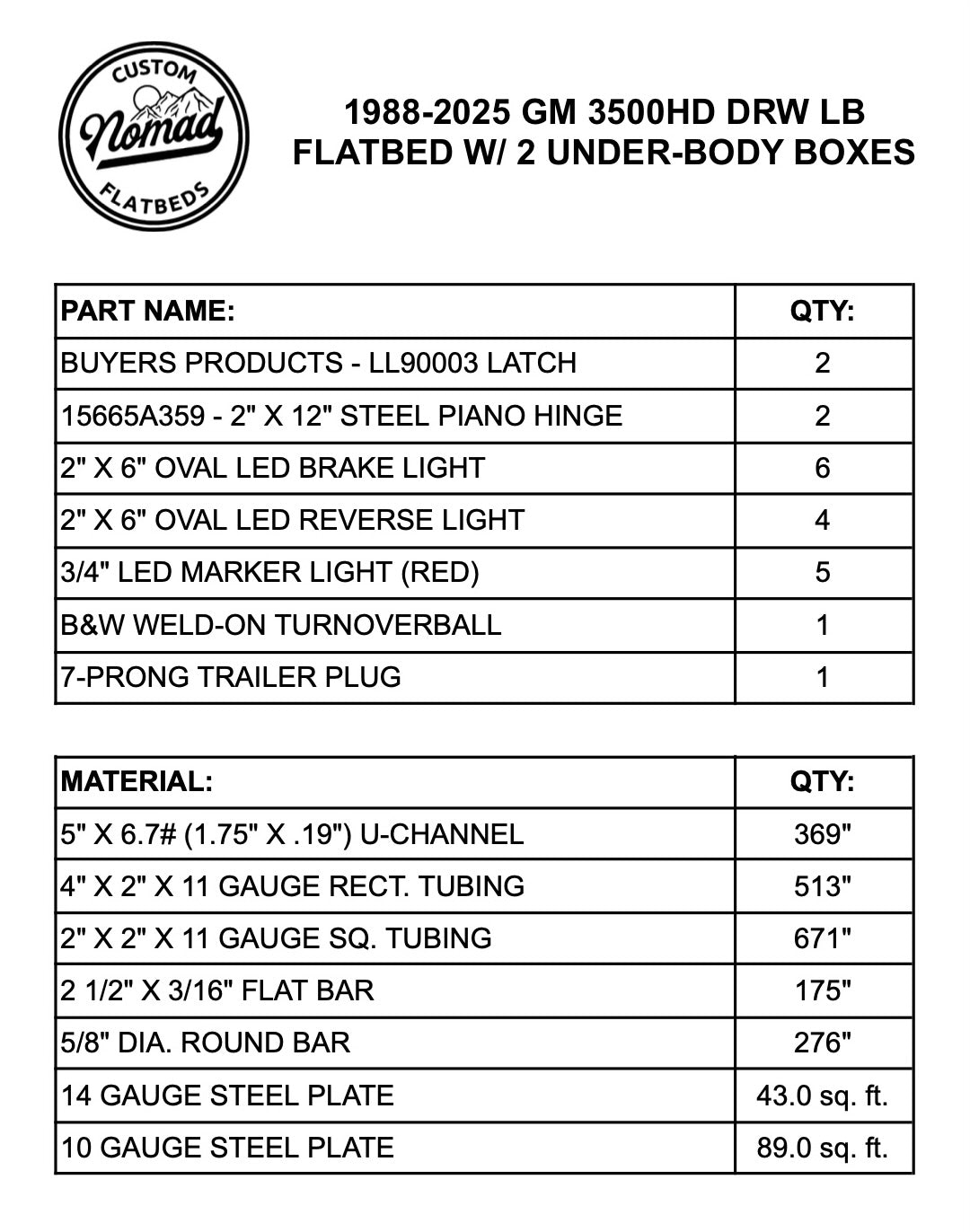

Every set of plans includes a detailed .pdf build plan and a .pdf bill of materials. Upgrade to the Fabricator's Package to add .dxf CNC cut files, or to the Manufacturer's Package to get all of the above plus a .step 3D model file.

Will the cut files work with my plasma table or laser?

Yes. The .dxf format is the industry standard and works with the vast majority of CAD/CAM software used by CNC plasma tables and lasers. If your machine needs a different file type, additional specialty formats are available upon request. Just contact us.

Can I build more than one bed from a set of plans?

Absolutely. There's no limit. Build as many beds from a single set of plans as you'd like, including beds you build to sell.

Can I share the plans with someone else?

Plans may be shared only with those directly helping you build, such as your employees, coworkers, or a third-party shop manufacturing parts for you. Sharing or distributing the plans outside of your build team, or reselling the files, is strictly prohibited.

How fast will I get my files?

Instantly. As soon as you complete checkout, you'll receive an email with a download link to a folder containing all of your files.

What if I get stuck mid-build?

Just reach out to us for tech support. Most issues are quick fixes, and we're happy to walk you through any part of the plans.

Do you offer refunds?

Because our plans are digital and delivered instantly, all sales are final. However, if a set of plans contains an error that affects how the bed is built, we'll issue a full refund. (Minor typos, such as in a title block, don't qualify.)
